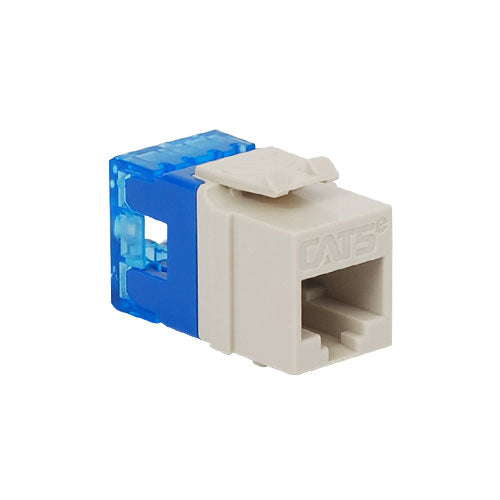

Modular Cat5e HD RJ-45 Keystone Jack, White
CAT 5e Module:
Current rating: 1.5 amps
Insulation resistance: 500 mohms min.
Contact resistance: 20 mohms max.
DC resistance: 0.1 ohm max.
Transmission performance exceeds Category 5e connecting hardware requirements specified in TIA/EIA-568-B.2 when used with compatible horizontal cable
Plug insertion life: 750 cycles min.
Plug and jack contact force: 100 grams min. using FCC approved plug
Plug retention force: 30 lbs min.
Temperature: -40 to 150 degrees F (-40 to 68 degrees C)
Housing: ABS, UL 94V-0
Jack wiring: 50 micro inches of gold over 100 inches of nickel
Connector: insulation displacement connector (IDC); accepts 23-24 AWG solid wire
Material: PC, UL 94V-0
