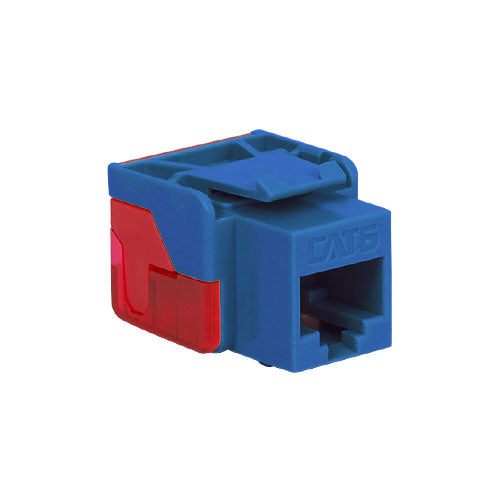

Modular Cat6 EZ RJ-45 Keystone Jack, Blue
- CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
- PCB technology provides maximum performance and superior signal quality
- Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
- Exceeds ANSI/TIA/EIA-568-B.2-1 Category 6 connecting hardware requirements
- Designed with in-line 110 IDC, in-sequence termination reducing termination time
- Terminate with 110 punch down tool ICACSPDT00
- One piece termination cap allows for a quick and easy termination
- Includes an integrated TIA-568A/B color wiring diagram
- Backwards compatible to all lower rated category components
- Compatible with all ICC configurable faceplates, inserts, surface mount boxes, and blank patch panels
- Compatible with all ICC furniture faceplates, Elite bezels, and Elite surface mount boxes
- Used with ICC Category 6 patch cords
- Installation instructions included
- UL listed
-Current Rating: 1.5 AMPS
-Insulation Resistance: 500 OHMS MIN
-Contact Resistance: 20 OHMS MAX
-DC Resistance: 0.1 OHM MAX
-Transmission Performance Exceeds Category 6
Connecting Hardware Requirements Specified in
TIA/EIA-568-B.2-1 When used with Compatible Horizontal Cable
-Plug Insertion Life: 750 Cycles Min
-Plug & Jack Contact Force: 100 grams Min
Usung FCC Approved Plug
-Plug Retention Force: 30 lbs Min
-Temperature: -40 TO 150 degrees F (-40 TO 68 degrees C)
-Housing: ABS, UL 94V-0
-Jack Wiring: 50 Micro inches of gold over 100 inches of Nickel
-Connector: Insulation Displacement Connector (IDC)
Accepts 23-24 AWG Solid Wire
