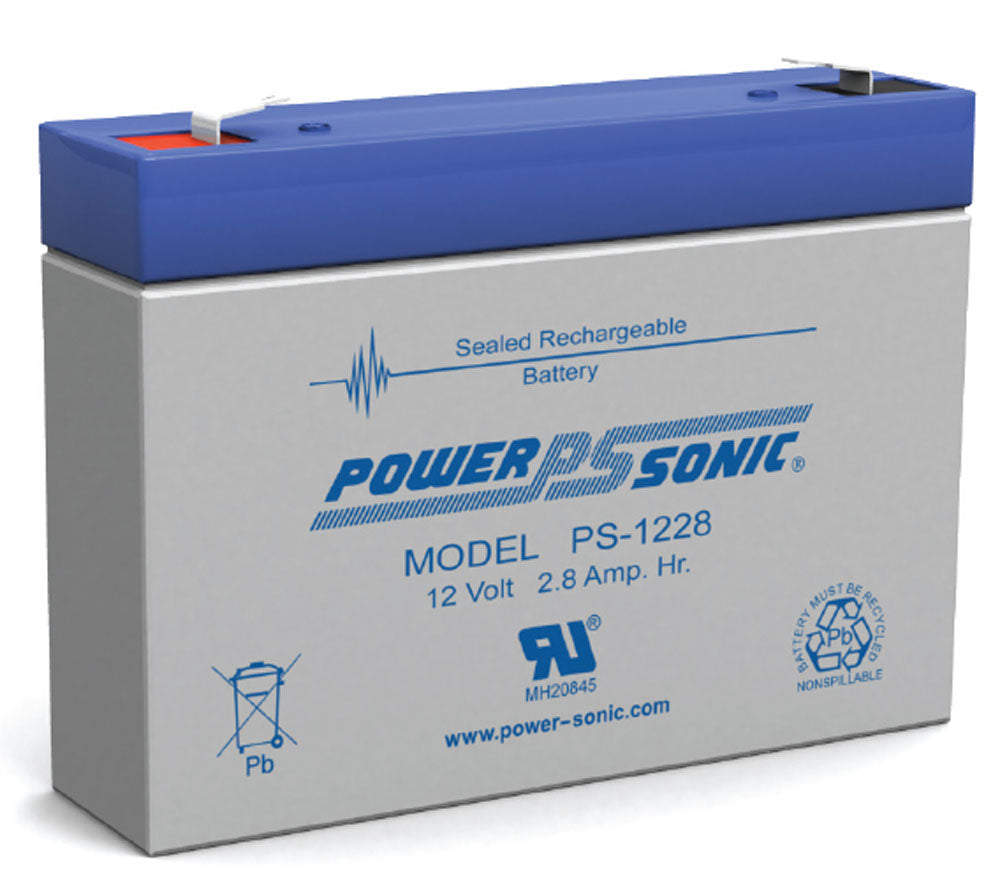

Sealed Lead Acid Battery, 12V 2.9AH

Sealed Lead Acid Battery, 12V 2.9AH

Powersonic Sealed Lead Acid Battery (12.0 Volts, 2.8ah)Key Features:Absorbent Glass Mat (AGM) technology for superior performanceValve regulated, spill proof construction allows safe operation in any positionPower/volume ratio yielding unrivaled energy densityRugged impact resistant ABS case...
Vendor: Power Sonic
SKU: PS-1228
Barcode: 813340010352
Availability: In stock
$18.29
(Request Dealer Access to View Online Pricing)
10 customers are viewing this product

Fast Processing

Fast shipping on orders

Estimated to be shipped same day on in-stock inventory ordered before 1:00pm PST

30-Day Returns

Learn More

Prop65 Warning

This product may expose you to chemicals known by the state of California to cause cancer or reproductive harm, for more information go to www.P65Warnings.ca.gov
Sealed Lead Acid Battery, 12V 2.9AH

Sealed Lead Acid Battery, 12V 2.9AH

$18.29 $15.54
Sealed Lead Acid Battery, 12V 2.9AH

Sealed Lead Acid Battery, 12V 2.9AH

$18.29 $15.54
Description
Description
x
Powersonic Sealed Lead Acid Battery (12.0 Volts, 2.8ah)

Key Features:

  • Absorbent Glass Mat (AGM) technology for superior performance
  • Valve regulated, spill proof construction allows safe operation in any position
  • Power/volume ratio yielding unrivaled energy density
  • Rugged impact resistant ABS case and cover (UL94-HB)
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified
  • U.L. recognized under file number MH 20845

    Performance Specifications:

  • Nominal Voltage: 12 volts (6 cells)
  • Nominal Capacity:
          20-hr.(140ma to 10.50 volts) .......... 2.80ah
          10-hr.(250ma to 10.50 volts) .......... 2.50ah
          5-hr. (480ma to 10.20 volts) ........... 2.40ah
          1-hr. (1.7a to 9.000 volts) ............... 1.70ah
          15-min.(5.3a to 9.00 volts) ........... 1.33ah

  • Approximate Weight: 2.60 lbs. (1.18 kg)
  • Energy Density (20-hr. rate): 1.29 W-h/in3 (78.80 W-h/l)
  • Specific Energy (20-hr. rate): 12.92 W-h/lb (28.49 W-h/kg)
  • Internal Resistance (approx.): 60 Milliohms
  • Max Discharge Current (7 Min.): 8.4 amperes
  • Max Short-Duration Discharge Current (10 Sec.): 29.0
  • Shelf Life (% of nominal capacity at 68°F (20°C)
          1 Month ...... 97%
          3 Months ..... 91%
          6 Months ..... 83%

  • Operating Temperature Range:
          Charge ......... -4°F (-20°C) to 122°F (50°C)
          Discharge ..... -40°F (-40°C) to 140°F (60°C)

  • Case:.......................... ABS Plastic
  • Power-Sonic Chargers: ...... PSC-12300A,12500A

    Dimensions:

  • Length: 5.24" (133) Width: 1.30" (33) Height: 3.82" (97)
       Height (Over Terminals): 4.09" (104)

    Terminal/Connection Type:

  • Quick disconnect tabs, 0.187" x 0.032" - Mates with AMP. INC. FASTON "187" series

    • Charging:

    Cycle Applications: Limit initial current to 840ma. Charge until battery voltage(under charge) reaches 14.4 to 14.7 volts at 68°F (20°C). Hold at 14.4 to 14.7 volts until current drops to under 260mA. Battery is fully charged under these   conditions, and charger should be disconnected or switched to "float" voltage.

    "Float" or "Stand-By" Service: Hold battery across constant voltage source of13.5 to 13.8 volts continuously. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charged condition.

    Note: Due to the self-discharge characteristics of this type of battery, it is   imperative that they be charged within 6 months of storage, otherwise permanent   loss of capacity might occur as a result of sulfation
